Simplify AI Connectivity
Powered by Millitronic Industrial I/O Virtualization Technology ( IIOVT), which makes IPC can remote-expand and extend I/O with Power over Ethernet. Easy to distributed deployment and AI integration. Connection and Management by IP address and support Camera, Keyboard, Video, Mouse

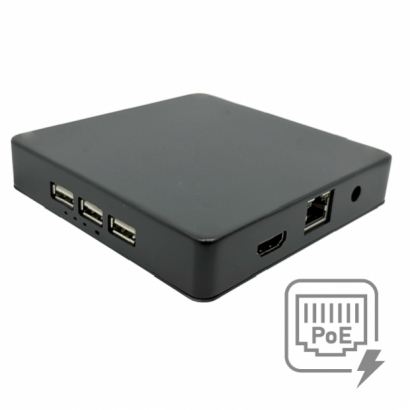

Specification
- Product Number : 9NIPCKVM1302
- Virtual Engine : Millitronic IIOVT
- Input Interface : RJ45, GbE
- PoE Standard (PD) : 802.3at (25W), 802.3af (12W)
- Work Distance : 100 Meter
- Wide Temperature : -10 to 85 degree
- Virtual USB Interface : 3*USB 2.0 host
- USB Power Delivery : 3*5V/900 mA
- Virtual HDMI Interface : 1*HDMI TX 1.4b
- Display Resolution : Up to 4K/30Hz
- Power Consumption : 5W (DC-Jack 12V/2A)
- Dimensions : 115mm*115mm*22mm
- Weight : 395 g
- Support IPC/OS : Intel X86, Win10/11 and Linux
- Support Embedded AI/OS : Nvidia Jetson, Linux
- View Display Setting by Windows
- UVC Camera by OpenCV and Windows
- USB Device by Windows HID
Display Mode
Support clone and extend mode, display latency < 16ms, Max up to 4K

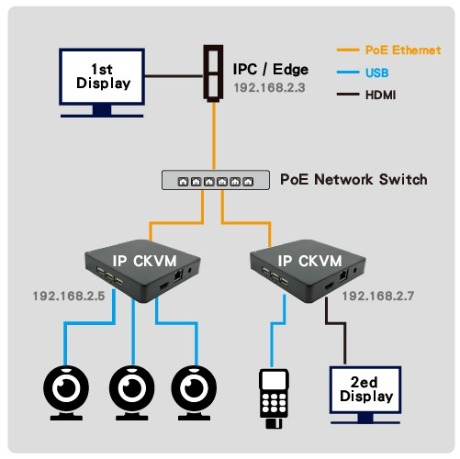

Distributed Deployment by PoE
With PoE network switch, AI Edge can expand and extend I/O to anywhere and anytime
Computer Vision
Support to Three webcam extension from an AI Edge with PoE, support openCV and openAI tool
