ML-700

ML-700

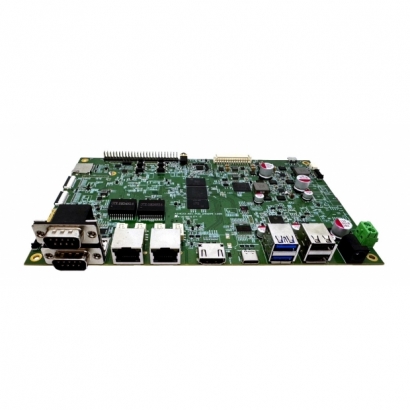

Millitronic ML-700 motherboard, based on the MediaTek Genio 700 Octa-Core Processor, combines two Cortex-A78 cores running at 2.2GHz and six Cortex-A55 cores running at 2.0GHz, as well as an integrated AI processor for deep learning, neural network acceleration, computer vision, and diverse communication connectivity.
/
DETAIL
Realize AI Idea in Edge

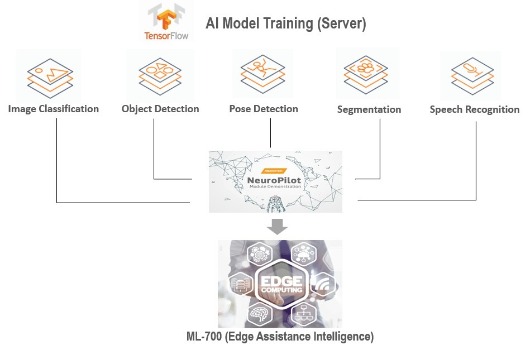

High-performance ML-700 Edge-AI IoT platform for smart home, interactive POS/Kiosk, industrial PC applications. Provides highly responsive TensorFlow model by MTK NeuroPilot processing, advanced multimedia connectivity, Daisy-Chain network, low power and longevity service.



Platform Highlight

  • 2xARM Cortex-A78 and 6xARM Cortex-A55
  • 4GB LPDDR4 and 16GB eMMC
  • MediaTek NPU3.0, multi-core AI processor
  • Support 32MP@30fps camera with internal ISP
  • 2xUSB3.0 for UVC camera and 3D ToF
  • High speed I/O support WiFi-6/7, 5G Sub-6 module and 60GHz mmW
  • 2xGbE support Daisy-Chain network
  • 2xCOM RS232/422/485
  • Mali-G57 GPU to support Dual Display ( 4K HDMI and eDP)

Software Service

  • Support Android/Linux Yocto/Ubuntu OS
  • Google Mobile Service (GMS), QT framework

AI SDK Service

  • Pose Detection
  • Face Detection
  • Object Detection
