IP CANbus Expander

IP CANbus Expander

IPC's expansion with PoE / CAN 2.0A and 2.0B / Fully compatible with ISO 11898
/
/
  • 1212.jpg
  • E1211.jpg
DETAIL

CANbus over Network

Power by Millitronic's Industrial I/O Virtualization Technology ( IIOVT ), IPC can expand additional CANbus interface with PoE and use IP address to select which CAN system for monitor and data acquisition, highly compatible with upper layer of CANopen software. Easy to distributed deployment and provide stable performance with ethernet cable and network switch

Specification

  • Product Number : 9NETC2201401
  • Virtual Engine : Millitrnoc IIOVT
  • Input Interface : RJ45, Ethernet
  • Work Distance : 100 Meter
  • Power over Ethernet (PD) : 802.3at ( 25W ), 802.3af ( 12W )

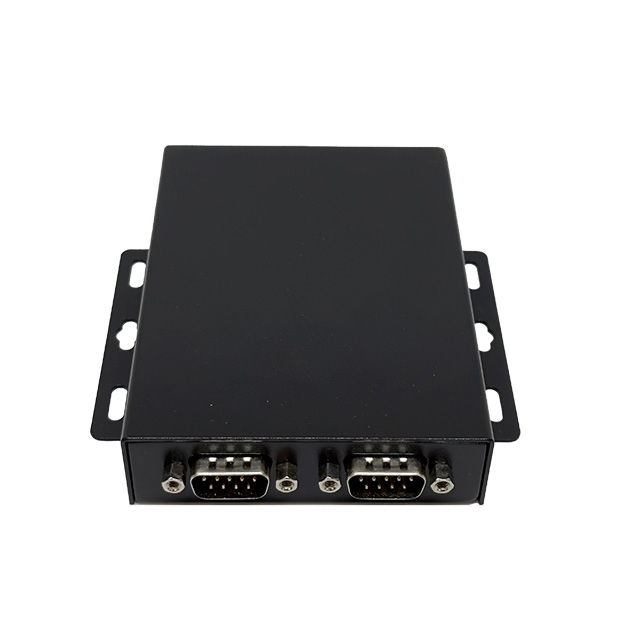

  • Output CAN Interface : 2* DB-9
  • CAN Connection : High speed, compliant with 11898, up to 1Mbps, and support CAN 2.0 A (11b-bit ID ) & 2.0B ( 29-bit ID )
  • Baud Rate : 10/20/50/100/250/500/800/1000K
  • Wide Temperature : -10 to 85 degree
  • Power Consumption : 2.4W
  • Dimensions : 105mm*108mm*22mm
  • Weight : 307 g
  • Support IPC / OS : Intel X86, Win 7/10/11 and Linux
  • Support Emceed AI / OS : NVidia Jetson Series, Linux
  • Fully compatible with CANopen, ASE J1939, DeviceNet
Application
  • Monitor ECU network
  • Battery Management System
  • Energy Storage
  • EV Charging Station
  • CANbus TFT Display

Painless to Expansion

East to expand CANbus by Ethernet, overcome hosing limitation and signal decay issues

CAN over Ethernet

Use Socket CAN to direct access CAN device, no need change HW & SW of original CAN device

Distributed Deploy and Manage

With IP connection, AI Edge and IPC can monitor and capture multiple CAN system information
