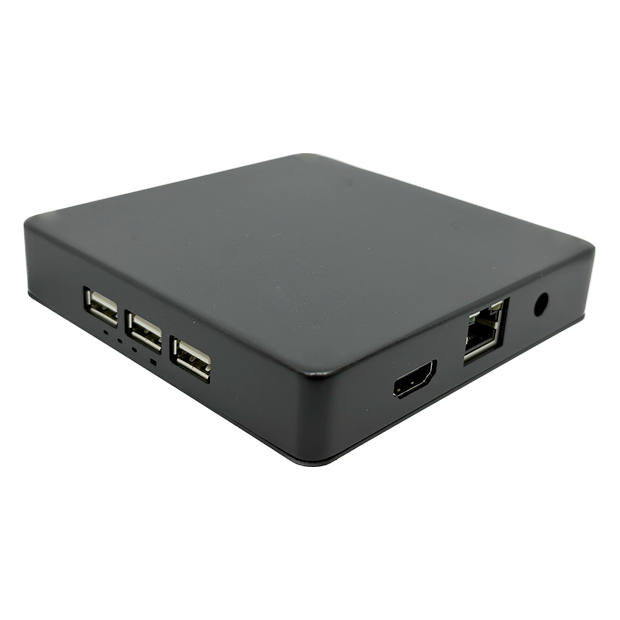

IP CKVM Lite

IP CKVM Lite

One Ethernet expand HDMI and USB interface / Up to 2K / Support ONE Webcam
/
DETAIL

Simplify AI Connectivity

Powered by Miilitronic Industrial I/O Virtualization Technology ( IIOVT), which makes IPC can remote-expand and extend I/O with a ethernet cable. Easy to distributed deployment and integration. Connection and Management by IP address and support Camera, Keyboard, Video, Mouse

Specification

  • Product Number : 9NIPCKVM1303
  • Virtual Engine : Millitronic IIOVT
  • Input Interface : RJ45, 10/100/1000 Mbps Ethernet
  • Work Distance : 100 Meter
  • Wide Temperature : -10 to 85 degree
  • Virtual USB Interface : 3*USB 2.0 host
  • USB Power Delivery : 3*5V/900 mA
  • Virtual HDMI Interface : 1*HDMI TX 1.4b
  • Display Resolution : Up to 1080p/60Hz
  • Power Consumption : 5W  (DC-Jack 12V/1A)
  • Dimensions : 115mm*115mm*22mm
  • Weight : 395 g
  • Support IPC/OS : Intel X86, Win10/11 and Linux
Operation
  • View Display Setting by Windows
  • UVC Camera by OpenCV and Windows
  • USB Device by Windows HID

Application
  • Healthcare Clinic
  • Self Parking System
  • Industry Automation
  • Smart Factory

Display Mode

Support clone and extend mode, and display latency < 16ms

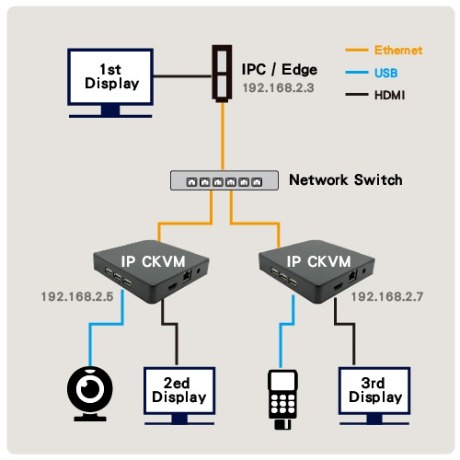

Distribute Deployment

By ethernet to release IPC computing ability, and compatible with 3rd party AI software and CMS tool

 Webcam Connectivity

Support ONE UVC webcam to do AI application, resolution up to 1080p
